Data-Sovereign Web Services Utilising the Solid Architecture

E-government allows citizens and businesses to access state services in a convenient and flexible manner, independent of time restrictions [13].

The term data sovereignty is used in various contexts and often carries different meanings. A universally agreed-upon definition doesn’t exist. Its literal significance implies control over data, its storage, collection, and processing. Interpreted this way, data sovereignty can indicate an individual’s control over their entitled data or data concerning them [2].

For the purposes of this research, control of personal data is described as safeguarding against unauthorised access and limiting access to only authorised individuals. Subsequently, data sovereignty is defined, within the following context, by the provisions of the General Data Protection Regulation (GDPR), which establishes a standard for all digital entities operating in Europe. The following principles of data protection are particularly relevant to this showcase:

Other provisions of the GDPR not relevant to the research interest are disregarded in this showcase. If the web service is intended to run in a productive environment, all required provisions must be met [3].

Solid (Social Linked Data) is a set of technological specifications for the exchange of social data that is built on a number of pre-existing standards. It includes technologies for communication, data management and security. The central idea of the Solid project is to provide interoperable standards and "fundamental affordances for decentralised Web applications for information exchange in a way that is secure and privacy respecting. In this environment, actors allocate identifiers for their content, shape and store data where they have access to, set access controls, and use preferred applications and services to achieve them" [4].

Due to the abundance of associated information, only the core concepts are presented here, supplemented by selected parts of the specification.

Germany has a federal system of governance, which results in multiple public authorities with distinctive responsibilities and duties towards citizens. The interaction between citizens and the authorities occurs through bureaucratic procedures like application forms. These forms frequently require data from other public authorities, the private sector or other recurring data that has to be specified again each time. This has led to considerable frustration among citizens, especially in the current age of digital data. An exemplary case of this frustration was the Erklärung zur Feststellung des Grundsteuerwerts 2022 [25].

Grundsteuer (property tax) is charged on real estate by the German government and is the responsibility of the property owners to pay. As of 2022, citizens were required to submit a new declaration containing their property details to ensure that their tax calculations were accurate. However, the authorities had much of the information needed to make the declaration, such as Lage des Grundstücks, Grundstücksfläche, Bodenrichtwert, Gebäudeart Wohnfläche, and Baujahr des Gebäudes _. The main problem is that the data was managed by different authorities, namely the _Finanzämter, the Katasteramt and the Grundbuchamt. As there has been no opportunity to share or access the existing data, it was necessary to declare it again [25], [26]. (The information may vary, as the regulations and names of the offices are not standardized in the Germany.)

To summarise, there are two possible solutions that could improve interactions with public authorities. Users should be able to share or access data from public authorities to others if they are authorised for it, without having to obtain and manage it themselves. For future use of the data, it is essential to ensure accuracy and immutability once declared.

Based on the previously described foundations for data processing maintaining the data sovereignty of users, we developed these requirements.

As a concept for this showcase, we propose a network of multiple applications to provide e-governance processes for citizens. Two distinct types of applications are required, along with a data storage system used by these applications. This data storage holds personal data, either directly under the control of the citizen or managed by government offices.

To give citizens complete control over their personal data, we propose the citizen application as the first type of application. This application allows direct access and editing of all personal data. Moreover, when used with other applications, it provides supplementary functions such as communication via messages or data access management.

For e-governance processes, we propose the second type of application, the government applications, each of which fulfils the role of a single public administration service. Stored personal data, sourced from different agents, can be shared between these government applications, creating a network of interdependent applications. These government applications enable e-governance functionality and allow citizens to interact with government services, such as providing personal information and creating new personal data, utilising existing data. In subsequent diagrams, government applications and their corresponding storages are denoted by OfficeNApplication and OfficeNStorage respectively, to differentiate between multiple government applications.

Before examining the specific applications, it is imperative to discuss the essential identities, which are the unique system-wide identifiers of the agents, as derived from the Concept. The primary concerns are the citizen and the government, with the government serving as a representative of any institution listed in Applications. These objects are identified based on the requirements and Solid technology and can be obtained from the figure below.

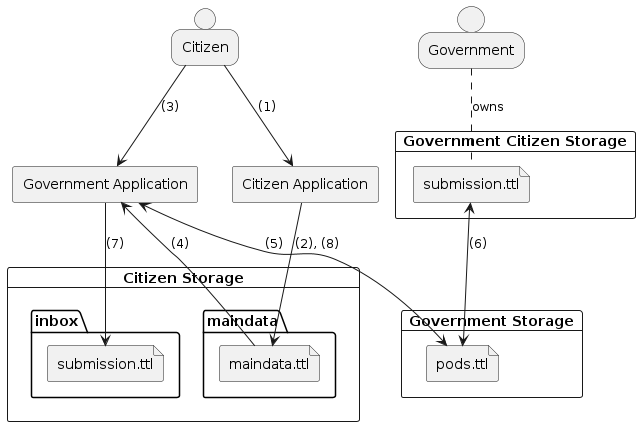

The figure illustrates the essential entities required for the programmatic process, with third-party services, such as the identity provider, excluded in this depiction. These entities include the applications and data storages that correspond to the agents. Furthermore, the government application includes an additional storage that safeguards the citizen’s data.

The numbered directional arrows depict a possible data flow path between the various components and their ranking in the flow. The diagram also indicates relationships between the components with dashed arrows.

When considering the technology used, certain prerequisites affect technological decisions. Solid is built on web technologies, which establishes a web-based architecture as the overall ecosystem.

Multiple implementations of Solid servers are available along with some free public accessible services. We have opted to use the Enterprise Solid Server (ESS) service from Inrupt, Inc., as we did not need to manipulate the server functions. Furthermore, the platform offers a distinct feature of Data Sovereignty, which cannot be found elsewhere. In addition, Inrupt offers client SDKs that simplify the operation of ESS functions:

We have chosen TypeScript and JavaScript as our primary languages because they are the most widely used programming languages in modern web applications. Our implementation utilises the Next.js React framework by Vercel, and we have chosen Ant Design to create the graphical user interface due to its capabilities in speeding up web application development.

The following text will not explain the functions abstracted by the libraries mentioned above.

The applications can be categorised into two groups, as described in Concept. The first group consists of applications that are completely trusted, meaning they have unrestricted access to all user data. This includes the ESS services and the citizen application. The second group comprises untrusted applications that have limited access to resources, only when absolutely necessary. This distinction is required because there are also two separate use cases for these applications. In order to establish true ownership of their data, it is necessary that users have access to a fully trusted application which enables them to maintain all of their data without restrictions. Such a Solid app with the ability to view and alter any user data is only achieved by providing unrestricted access. In government applications, unrestricted access should not be necessary as they only consume the provided data when necessary, while complying with [REQ-1] and [REQ-6]. As a result, these two groups are essential to fulfil all aspects of user data sovereignty.

The following table offers a symbolic name and crucial information of implemented applications, including their names, brief descriptions, designated actions and links to public instances. The number of applications was chosen to simulate the complex processes often present in official public service contexts. This approach avoids oversimplification of processes and interconnected dependencies, and creates a realistic and diffuse network of applications.

As outlined in the applications section, the applications and services implemented can be categorised into trust groups. This section will provide a thorough examination of this classification. Firstly, we will examine data ownership in detail, followed by a discussion of data creation. This discussion aims to provide an objective and clear overview of the trust groups and their functionality. Additionally, we will delve into authorisations and provide a detailed description of the inputs and outputs of respective applications.

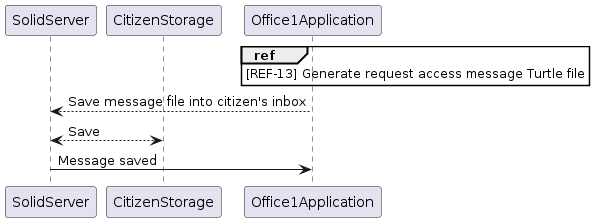

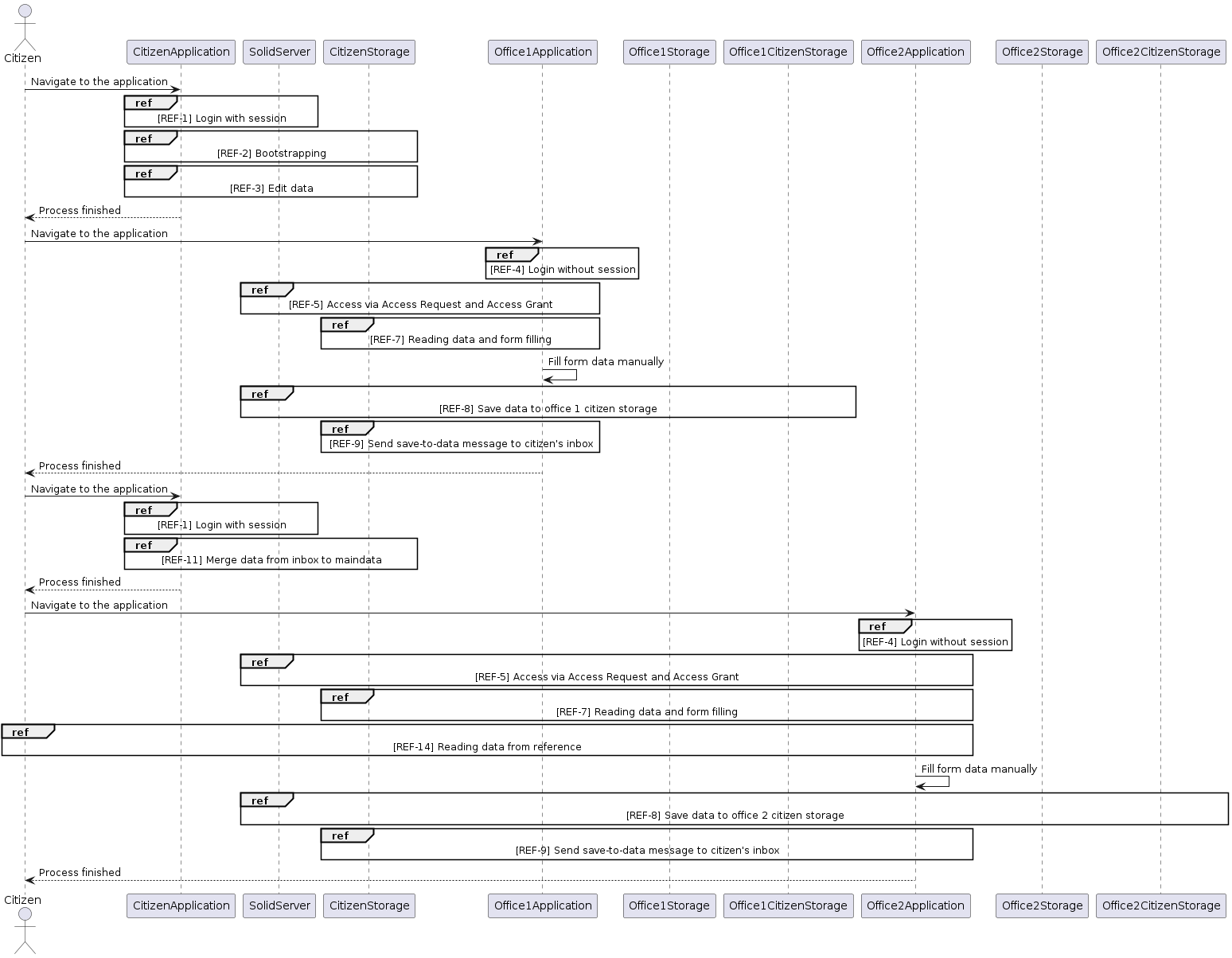

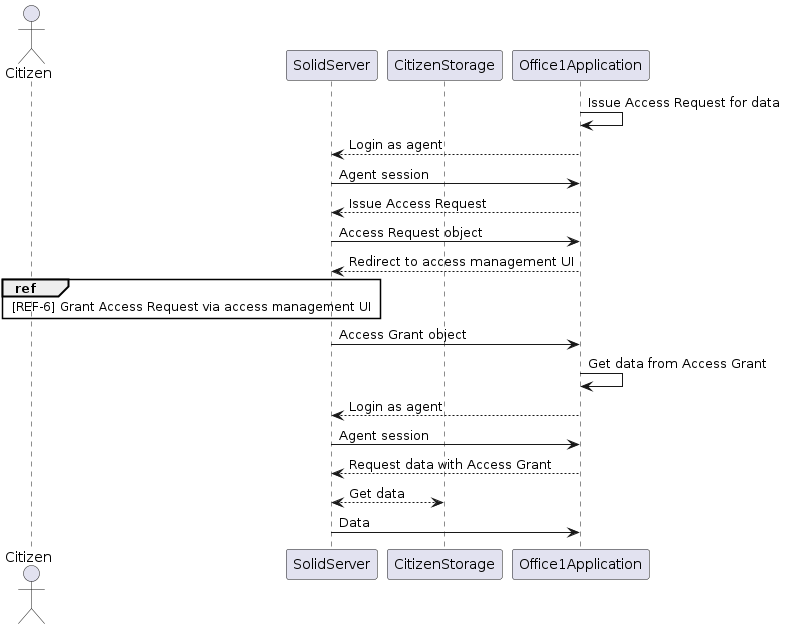

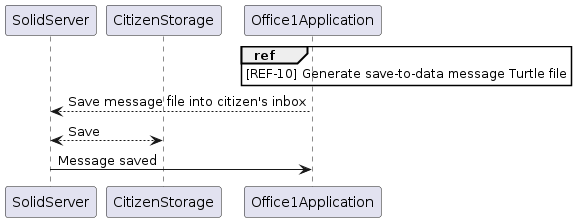

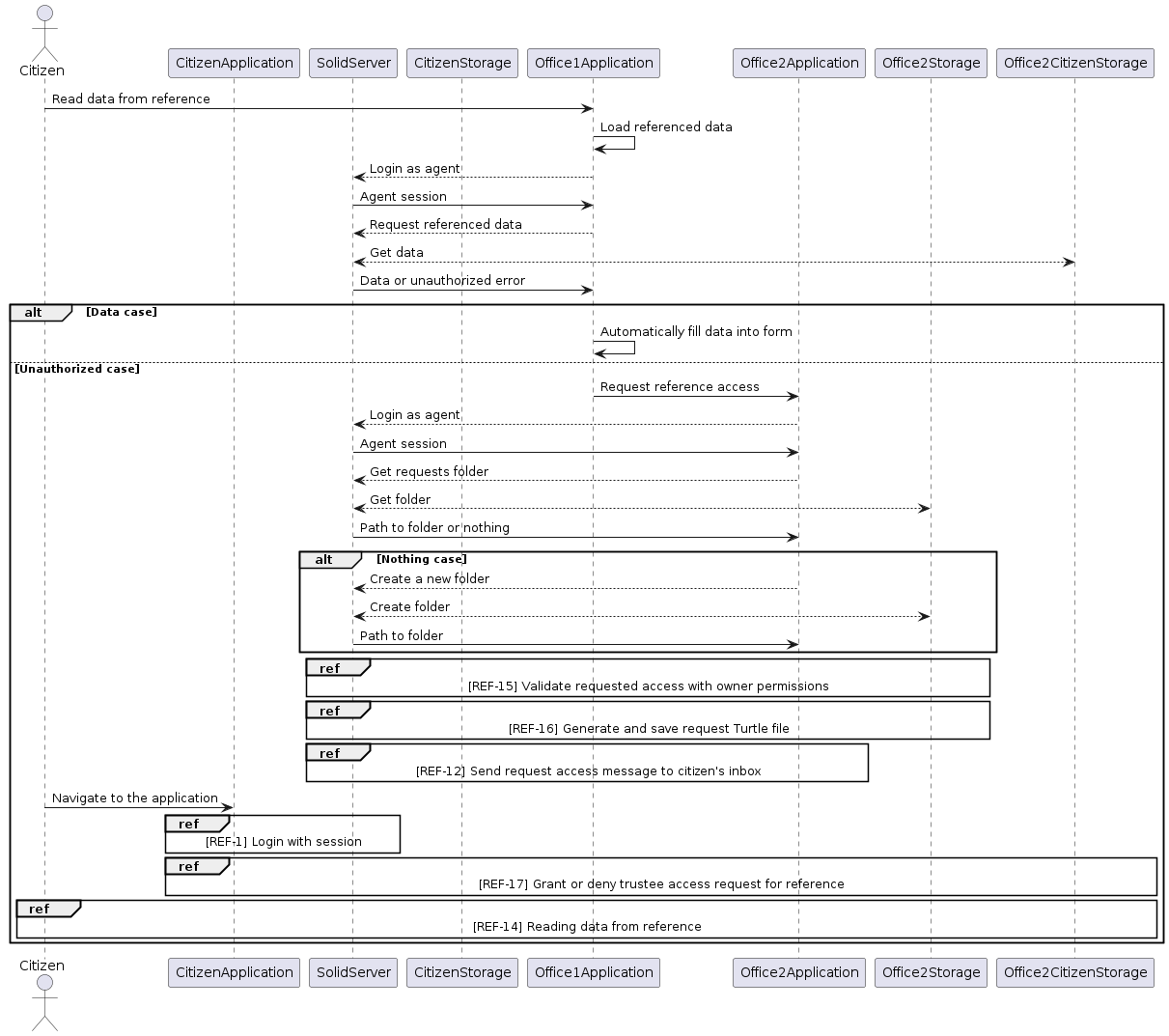

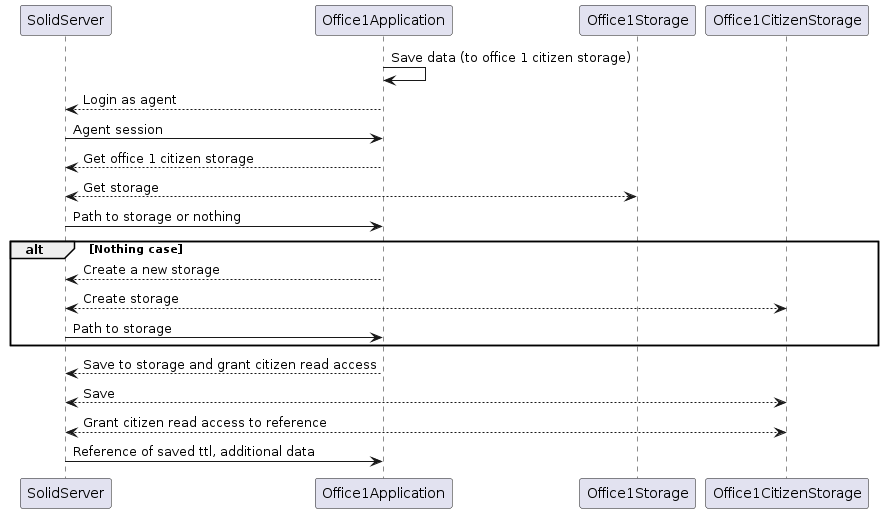

The sequence diagrams below illustrate the processes showcased. One diagram illustrates the complete usage scenario, whereas the remaining diagrams portray the recurrent sequences within it.

To enhance diagram clarity, reference blocks are utilised to represent these recurrent sequences. These referenced subprocesses always include the participants furthest to the left and right, as indicated by their width. Furthermore, some participants in between may also be involved.

For simplicity, the diagrams do not include differentiation between client and server functions, as it bears a limited relevance and would unnecessarily enhance the diagram’s complexity. Communication between the client and server of the same participant is indicated by an arrow pointing from the participant to itself, similar to other actions targeted at itself. In addition, in cases where basic read/write/append operations are performed on data, the following diagrams condense the request and response actions into a single arrow pointing in both directions.

As previously described, offices serve as representatives for the web applications listed in Applications. Office 1 and office 2 are introduced in the following diagrams to clarify the communication process between two representatives. These offices serve as placeholders for relevant participants and do not represent specific offices. Furthermore, the meaning of office 1 and office 2 may vary between the different diagrams.

This section covers various implementation strategies and approaches that were relevant during the project. It outlines specific development choices and describes customised solutions for required features. The section also outlines failed attempts, providing context for the final successful solutions and why these were necessary over more straightforward options.

As outlined in Concept, we designed two different types of applications; multiple government applications representing public administration offices, as well as one citizen application, used to manage personal data. In order to reduce effort required by citizens to effectively navigate bureaucratic processes, one of the important requirements was the interoperability of all applications Interoperability is also an integral part of the Solid specifications, and we found the general architecture consisting of data storages, agents and applications to be well-fitting for the purpose of public administration services. We observed that building multiple applications with logically linked data requirements based on the same concepts can help reduce the effort needed to develop each individual application. Providing applications with a similar structure and design can also improve upon the usability and accessibility of public services, since a familiarity with structures and interfaces could help citizens navigate the processes more easily. Although gaining a deep understanding about data processes in public administration services on an operational level was not feasible in the scope of this work, the general assumption can be made that with further specification of data and processes required by different public administration offices, the ideas developed could be improved upon and expanded. However, it is important to note that all applications and processes developed in this work rely upon a limited understanding of the domain of public administration service processes and regulations. Certain aspects, e.g. legal restrictions could not be included in designing the scenarios.

Other additions to specific technologies may be required in further development, and need to be evaluated separately. Many technologies and applications specific to public administration services in Germany are already established or under development. These need to integrate with e-government application under Solid specifications. One aspect where this might be needed is providing other identification services in combination with the Solid WebID Profile. Available technologies in Germany are e.g. the electronic identity card or the BundID.

Giving the users full control of their personal data and providing transparent data flows as well as facilitating access to already submitted or produced data is one of the most important aspects of the specified scenario. Since the Solid specifications aim to give a reference for those standards, many of the included technologies integrated well with the planned architecture. Controlling data access with the ACL resources can serve as an entry point for those concerns. We have found the specifications lacking in the context of usability, as manually setting access rights for specific resources requires the user to be familiar with the general concepts of data storage and Solid servers, as well as understanding the fundamental access modes in the ACL resource.

There are two main concerns in our implementation regarding this:

Firstly, we decided to further limit the scope of our implementation to work with the Access Grant Service implemented by the Solid Enterprise Server (ESS). The service allows applications to directly request access to any resource, specifying which access modes are needed and optionally a time frame for which the access is granted. Other server implementations don’t yet support this feature, and this project was limited to creating Solid applications, while using a reference implementation of a Solid server. Some functionalities of the government office apps, like initialising data storages for each citizen, might have been more straightforward implementation-wise if we had built a dedicated Solid server. Our decision to focus on the ESS implementation has made it possible to make use of the Access Granting mechanism, but because of that, the applications built in this showcase are not compatible with other Solid providers. While it is likely that other providers will have a similar feature in the future, as the concept is featured in the Solid access control policy specifications, it is a drawback that the applications developed in this showcase are not independent of the user’s choice of Provider.

The second important subject concerning data sovereignty is the data access in the citizen app. Applications in this showcase require specific resources being present in a data storage, such as the maindata and inbox. The citizen application developed in this showcase requires read and write access to a data storage in order to create these resources with a bootstrapping mechanism, as described in the chapter implementation [REF-2] Bootstrapping. Users might be hesitant to use their personal data storage with official government applications, if it contains data from other sources or applications. While Applications that provide users with the tools to edit all their data freely by themselves by design need full access to a data storage, solutions could be found to provide users with a way to create these necessary resources with any other Solid application they prefer. One way to achieve this could be providing description resources (e.g. using the Protocol for Web Description Resources [27]) for the needed (container) resources, which Solid applications could use to initialise a users Solid storage according to the description provided. While the use of description resources is featured in the Solid protocol under section 4.3 Auxiliary Resources, there is not yet a specification for initialising storage resources based on description resources.

We have found that since the Solid specifications were developed with Social Web Applications as a background, where all resources concerning an agent are typically owned by that agent themselves, some of the necessary structures and mechanisms needed to mirror the processes of public administration services had no equivalent model in the specification.

One of those features is the ability to grant access to resources of which a user is not the owner, but the trustee. This distinction is important since resources produced by government applications on behalf of an individual need to be owned by those offices to ensure consistency and offer a single point of truth. In the implementation, we conceptualised this by creating a separate storage for each citizen using a government application, to which they will be granted read access, based on their WebID. Since many public administration processes require citizens to forward data produced by one public entity on their behalf to another, citizens need to be able to provide read access to those resources to other agents.

As described previously in section Additional Mechanisms, in this implementation different approaches were tested and evaluated against the specified Requirements.

The implementation proposed in this work features a functional mechanism for government applications to request access to a resource owned by another government application, which will be granted after confirmation by the trustee. However, it should be noted that this feature should only serve as a reference as it is experimental and further specifications would be needed to ensure security in this process.

We have found that one challenge in working with the developing specifications and frameworks was the difficulty in planning and developing an application based on standards and libraries that are in different stages of development. One of the biggest issues is the lack of standardised patterns in the libraries. This has been pointed out by developers and designers interviewed at SolidLab Flanders [23] as well, with developers mentioning a lack of design patterns as the second-biggest challenge in developing Solid applications. The patterns mentioned most in that survey are login and consent flow. Given that the libraries and reference implementations are still in development, some standardisation could be an important next step. There are two main issues that could be solved by standardised implementations: Firstly, additional standardised patterns make it easier to develop Solid applications, which could lead to more people adopting the standard, and secondly, recognisable patterns make the applications easier to understand and use.

Differences in terminology between the JavaScript libraries and SDK, the Enterprise Solid Server documentation and the Solid specification itself made development more difficult and can be seen as severe risks in the development of applications, especially if it concerns security and authorisation features. The initial design of features or processes, based on the Solid specification, needed to be adapted throughout development as the provided library implementations diverge from the specification or not yet realise all needed features. This resulted in reduced quality as several different approaches had to be developed, often containing workarounds for these limitations. As such, some of the developed solutions are highly experimental, which is a direct consequence of problems encountered with the current state of the Solid specification and framework. Some of these workaround implementations and failed approaches are further detailed in Implementation Strategies.

In order for e-government applications to be accessible, an intuitive User Interface is an important requirement. We specified this previously as "Applications should not require deep understanding of underlying technologies on the user side […​]" [REQ-3]. Since advanced end-user testing hasn’t been in the scope of this work, the following insights are based on qualitative observations and feedback.

One of the primary challenges encountered in implementing the User Interface within the Solid framework relates to data flows. Several aspects were found to be confusing for users. Users may encounter difficulties understanding how data moves within the system, potentially leading to frustration or mismanagement of personal data. Similarly, the login and authentication flow might not be easily understandable for users, especially distinguishing between signing in using a session and merely providing a WebID without signing in. This differentiation may not be immediately clear to users and can create uncertainty about their status within the system. Access rights management is a critical element of all applications developed in this work, and likewise is not something most people use regularly. Particularly, since access granting works differently for citizens' personal data storages and those owned by government offices on behalf of the citizen. Users may find the multitude of steps involved in granting access to be overwhelming and time-consuming.

In addition to these challenges, a substantial factor in the implementation and adaptation process revolves around understanding the Solid specifications and navigating the associated terminology. Our experience aligns with the findings in the previously mentioned series of interviews conducted by SolidLab Flanders [23], which identified the challenge of making Solid concepts explainable as a top concern for Solid app developers. Users need accessible explanations and intuitive interfaces to engage effectively with Solid-based applications. In future work on these or similar applications, these concerns should be emphasised.

In order to apply the Solid specifications to the use case, all resources need to be provided as RDF triples and as such stored as Turtle files. As such, all resources in a Solid storage are processable by a vast number of applications, since it is a non-proprietary standard and most RDF resources are described using shared ontologies and vocabularies specific to and across various domains. This makes shared and collaborative management of knowledge and data possible. In approaching this project, we were confronted with the challenge that public administration processes and entities are one domain, that does not yet have an agreed upon vocabulary for Linked Data.

The Chapter Data Modelling focuses on the implementation aspects concerned with modelling data required in the administration processes as RDF resources. Since in this project the focus was on developing applications, that closely mirror existing processes, we decided to create a custom vocabulary for specific data types( see also [Custom gov RDF Vocabulary]). Alternatively, existing Vocabularies could be used, such as the Vocabulary of Interlinked Datasets. We have found that even with the reduced complexity of the government applications and data flows designed in this showcase, compared with those needed for more complex bureaucratic processes, no already established vocabulary features needed predicates, such as tax reference number or trade licence.

Creating a vocabulary of predicates not only facilitates automated processing of information, but can also serve as a tool for information discovery and sharing. As such, creating a vocabulary for representing data relevant to e-government processes could be both a tool to provide insights into the connections between data types and processes as well as serve as specification for the design of applications in this domain.

The showcase developed in this work can serve as a reference implementation for utilising existing Linked Data principles, and more specifically, the Solid specifications to design e-government applications. However, in order to effectively and securely build on this, a common vocabulary for sharing personal data related to public administration services is needed.

This work aimed to develop a showcase for e-government services as Solid applications. We proposed an architecture of logically linked applications that utilises Linked Data principles in order to facilitate sharing personal data with different public entities. This features a citizen application, used to manage a citizen’s personal data storage, which is accessed via a Solid server, as well as government applications, that facilitate sharing data with different public offices. All government applications require different information from citizens, which is entered on a UI form. They then provide a service, which can be storing entered data as official documents or additionally providing certain personal data to the citizen, which can be saved in their own storage.

We found that the Solid specifications were generally well applicable to this context. Established standards and implementations were used to ensure data sovereignty, such as managing access via Access Requests and Grants. However, some specific custom workflows needed to be implemented, mainly concerning the storing of citizen data by government applications. We proposed a model for this, where government applications create a separate storage instance on the Solid server for each citizen, who will then be the trustee of all resources in that storage. Trustees can access and share these resources. This is a scenario not touched upon in the Solid specifications, and as such, no standardised workflow exists. As applications or Solid servers developed in an e-government context will need these functionalities, in order to further develop such services, additional specifications need to be provided.

Additional further challenges, such as designing usable and understandable user interfaces, ensuring data consistency and working with RDF vocabularies have been described in this chapter.

All highlighted shortcomings of preliminary specifications when applied to e-government applications, should not be understood as arguments for deeming the Solid specifications fundamentally flawed or inapplicable in this scenario. Rather, they should be seen as a basis for future research.
